Target Gases & Parameters: CO₂, PM2.5, CH₂O (formaldehyde), VOCs, Temperature, Humidity
Measurement Range:
CO₂: 0 – 5000 ppm (typical)
PM2.5: 0 – 1000 µg/m³
CH₂O: 0 – 5 ppm
VOC: 0 – 10 ppm (equivalent scale)
Temperature: -20°C to +85°C
Humidity: 0 – 95% RH (non-condensing)
Output Interface: UART / I²C (depending on model)
Operating Voltage: 3.3V – 5V DC
Operating Current: < 120 mA (typical)
Communication Protocol: Standard digital output for easy integration
Response Time: < 5 seconds for gas concentration changes
Accuracy:
CO₂: ±(50 ppm + 5% of reading)
PM2.5: ±15%
Temperature: ±0.5°C
Humidity: ±3% RH
Lifetime: > 3 years (typical under normal usage conditions)
Dimensions: Compact PCB module, approx. 48 × 30 × 12 mm
Multi-in-one module
ZPHS01 Multi in one gas sensor
₹6,000.00 Price With Tax
Model: ZPHS01
Target Gases: CO₂, PM2.5, CH₂O (formaldehyde), VOC
Additional Parameters: Temperature, Humidity
Detection Ranges:
CO₂: 400 – 5,000 ppm
PM2.5: 0 – 1,000 µg/m³
CH₂O: 0 – 5 ppm
VOC: Broad detection of volatile organic compounds
Temperature: -20°C to +60°C
Humidity: 0 – 95% RH (non-condensing)
Output Interface: UART / I²C / RS485 (depending on version)
Power Supply: 5V DC
Applications: Indoor air quality monitoring, HVAC, IoT devices, smart buildings, laboratories
Availability: 50 in stock
🛡️ 15 Days Warranty
This product comes with a 15-day warranty starting from the date of delivery. The warranty covers manufacturing defects only. If a defect is confirmed, the item will be replaced.
❌ Warranty will not apply if:
The product has been misused, dropped, or damaged.
It has been exposed to water, fire, chemicals, or static discharge.
It has been tampered with, soldered, or altered in any way.

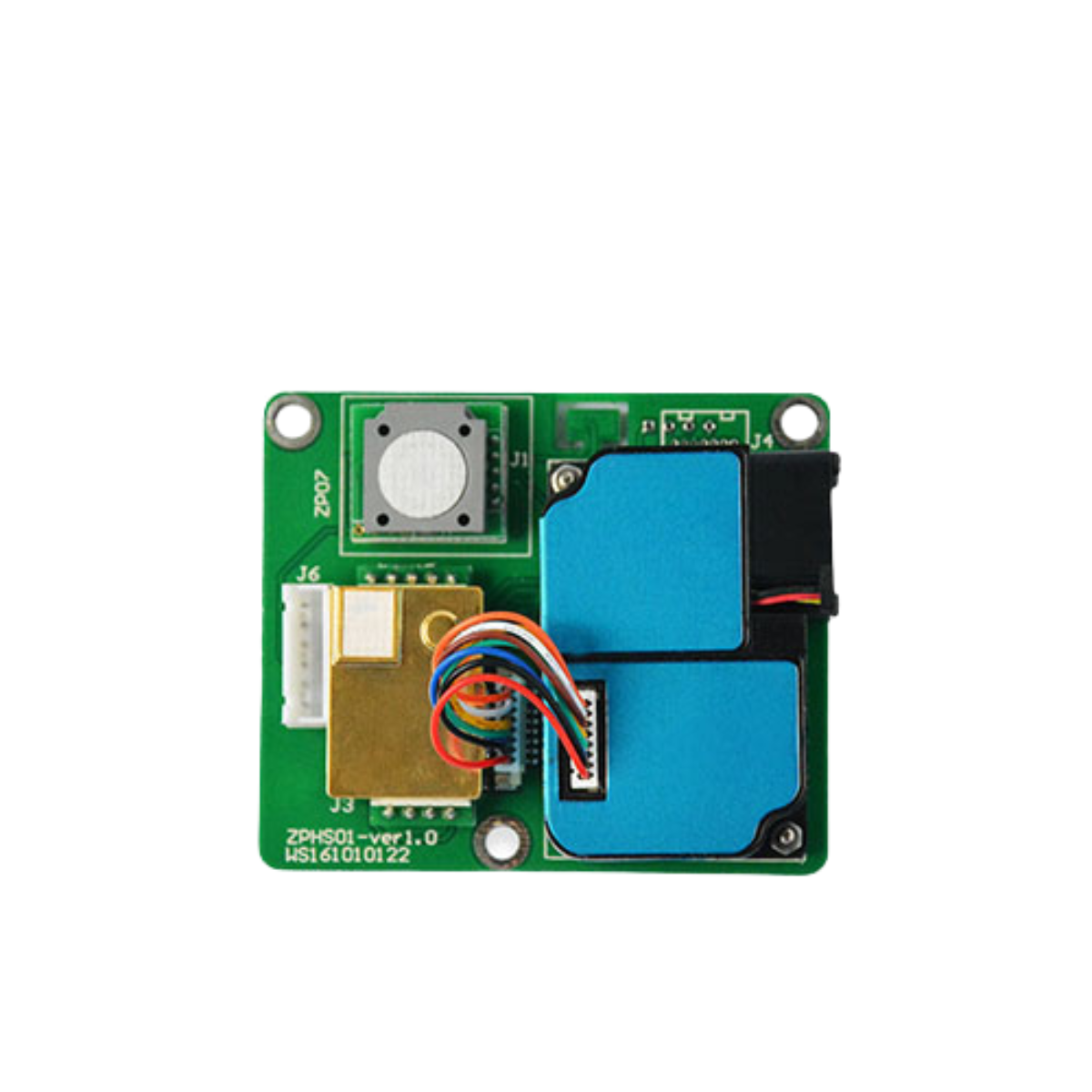

The ZPHS01 Multi-in-One Gas Sensor Module is a professional air quality sensor designed to measure multiple environmental parameters in real-time. It combines CO₂, PM2.5, formaldehyde (CH₂O), VOC (volatile organic compounds), temperature, and humidity sensing into a single compact module.
This sensor is intended for integration into electronic devices, research projects, air quality monitoring systems, HVAC equipment, and IoT applications. It provides accurate digital output through UART / I²C / RS485 interfaces (depending on version), making it easy to integrate with microcontrollers, computers, and monitoring systems.
Important Note:
This is a sensor module only. It requires technical knowledge for integration into a system or device.
It is not a consumer-ready standalone product and does not come with a display or enclosure.
Accuracy may vary depending on installation, environment, and calibration.
Key Features
Measures 6 environmental parameters in one module: CO₂, PM2.5, CH₂O (formaldehyde), VOC, temperature, and humidity.
Compact size with low power consumption.
Digital output for easy integration (UART / I²C / RS485).
Widely used in indoor air monitoring, smart homes, IoT projects, laboratories, and HVAC systems.
Typical Applications
Indoor Air Quality Monitoring Devices
Smart Home & IoT Solutions
HVAC & Environmental Control
Air Purifiers and Ventilation Systems
Research & Educational Projects
Package Includes:
1 x ZPHS01 Multi-in-One Gas Sensor Module
1 x Connection Cable / Header Pins (if applicable)
| Weight | 0.200 kg |
|---|---|
| Dimensions | 4.8 × 3.0 × 1.2 cm |
