₹12,100.00 Price With Tax
Measures Oxygen concentration (0–25% vol)
Electrochemical sensing technology for high accuracy
Fast response & stable performance
Long service life with low power consumption
Ideal for gas detectors, analyzers, and air quality monitors
This product comes with a 15-day warranty starting from the date of delivery. The warranty covers manufacturing defects only. If a defect is confirmed, the item will be replaced.
The product has been misused, dropped, or damaged.
It has been exposed to water, fire, chemicals, or static discharge.
It has been tampered with, soldered, or altered in any way.
Measurement Principle: Electrochemical (galvanic type)
Measurement Range: 0 – 25 %Vol O₂
Resolution: 0.1 %Vol
Accuracy: ±0.5 %Vol O₂
Response Time (T90): ≤15 seconds
Signal Output: Analog mV (linear to O₂ concentration)
Linearity: ±2 %
Zero Offset: ≤0.5 %Vol O₂ equivalent
Repeatability: ≤2 % of full scale
Expected Lifespan: ≥24 months in normal air
Operating Temperature: -20 °C to +50 °C
Operating Humidity: 15 – 90 % RH (non-condensing)
Operating Pressure: 80 – 120 kPa
Storage Life: 6 months in sealed packaging
Weight: Approx. 50 g

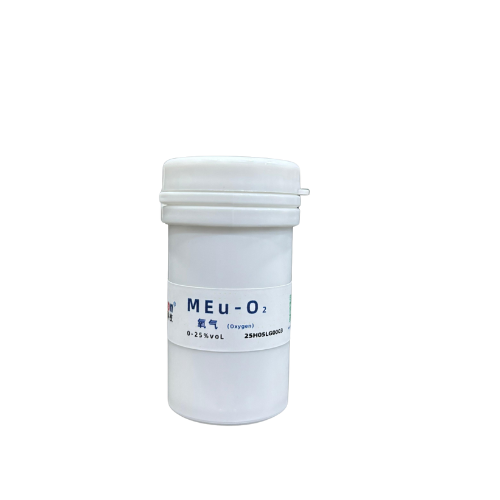

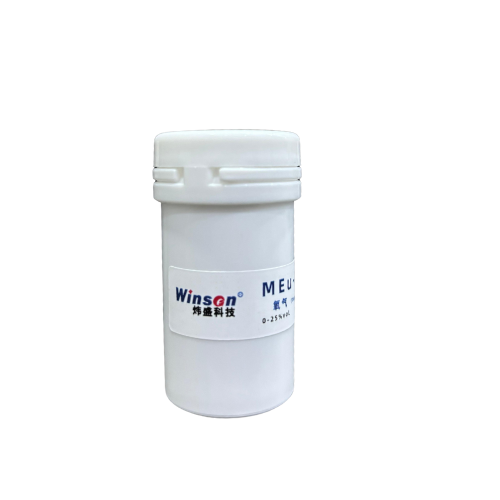

The Winson MEu-O2 is a high-performance electrochemical oxygen sensor designed to measure oxygen concentration in the range of 0–25% volume. With its fast response time, high stability, and excellent sensitivity, this sensor is widely used in air quality monitoring, portable gas detectors, industrial safety, and environmental monitoring systems.
The sensor features low power consumption, long service life, and stable output, making it suitable for continuous monitoring applications. Its compact design allows easy integration into gas analyzers, safety instruments, and IoT-based smart detection devices.
The Winson MEu-O2 sensor provides dependable oxygen detection with high accuracy and fast response, making it an ideal choice for industrial and professional oxygen monitoring systems.
Proper calibration and installation are recommended for accurate oxygen monitoring and safe operation.
| Weight | 0.50 kg |
|---|---|
| Dimensions | 2 × 2 × 5 cm |
