Parameter |
Specification |
|
Product Name |
TB200B-ES4-CO-2% |
|
Sensor Type |
Electrochemical CO Sensor Module |
|
Gas Detected |
Carbon Monoxide (CO) |
|
Detection Range |
0–2% Vol (0–20000 ppm) |
|
Maximum Overload |
4% Vol (Typical) |
|
Output Type |
Analog Voltage / Current Output |
|
Response Time (T90) |
≤ 30 seconds |
|
Warm-Up Time |
≤ 3 minutes |
|
Operating Temperature |
-20°C to +50°C |
|
Operating Humidity |
15% to 90% RH (Non-condensing) |
|
Expected Sensor Life |
2–3 years (Typical) |
|
Application |
Industrial exhaust, combustion analysis |
|
Mounting |
PCB Module Integration |
CO Sensor

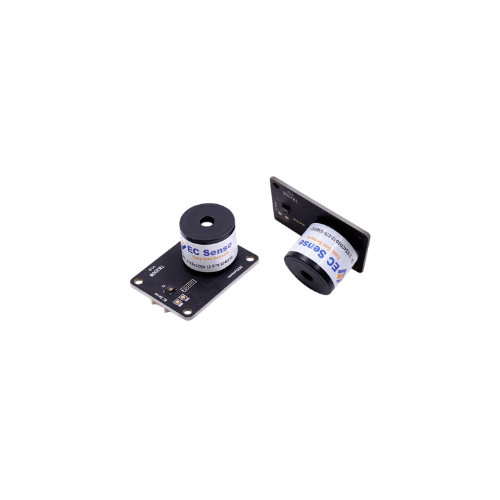

TB200B-ES4-CO-2% CO Gas Sensor Module
₹10,561.00 Price With Tax
Buy TB200B-ES4-CO-2% CO Gas Sensor Module for high concentration carbon monoxide detection up to 2% volume. Industrial grade & reliable. Order now!
Available to Order lead time minimum 5-7 Weeks , Minimum quantity to order 5 pcs.
15 Days Warranty
This product comes with a 15-day warranty starting from the date of delivery. The warranty covers manufacturing defects only. If a defect is confirmed, the item will be replaced.
Warranty will not apply if:
- The product has been misused, dropped, or damaged.
- It has been exposed to water, fire, chemicals, or static discharge.
- It has been tampered with, soldered, or altered in any way.
TB200B-ES4-CO-2% CO Gas Sensor Module – Percent-Level CO Detection for Industrial Applications
The TB200B-ES4-CO-2% CO Gas Sensor Module is designed for high concentration carbon monoxide monitoring up to 2% volume (20,000 ppm). Built with advanced electrochemical sensing technology, this module delivers accurate and stable performance in demanding industrial environments.
Unlike low-ppm CO sensors used in residential safety systems, the TB200B-ES4-CO-2% is engineered for percent-level detection. This makes it ideal for combustion systems, industrial exhaust monitoring, and process control applications where CO concentrations can reach high levels.
Carbon monoxide is a critical parameter in combustion efficiency monitoring and industrial safety compliance. In generator rooms, boilers, furnaces, and heavy machinery operations, CO levels can rise rapidly. The TB200B-ES4-CO-2% ensures fast response and dependable monitoring in such high-risk environments.
Key Features
- Detection range: 0–2% Vol (0–20000 ppm)
- High concentration electrochemical sensing
- Fast response time (T90 ≤ 30 seconds)
- Stable analog output signal
- Industrial-grade performance
- Compact PCB-integrated module
- Long service life (2–3 years typical)
Ideal Applications
- Industrial combustion monitoring
- Generator exhaust analysis
- Boiler and furnace safety systems
- Manufacturing plants
- OEM industrial gas detection equipment
Why Choose TB200B-ES4-CO-2%?
This module is specifically optimized for percent-level CO detection where standard ppm-range sensors are insufficient. It provides accurate high-range measurements essential for industrial process monitoring.
High concentration CO monitoring
Reliable and repeatable measurements
Easy integration into industrial systems
Designed for harsh operating conditions
Cost-effective industrial solution
Order TB200B-ES4-CO-2% Today
If you need a robust percent-level CO gas sensor module for industrial safety or combustion monitoring, the TB200B-ES4-CO-2% is a dependable choice.
Order now to ensure accurate high-range carbon monoxide detection in your application.
| Weight | 0.200 kg |
|---|---|
| Dimensions | 12 × 6 × 6 cm |
