Particulate Detection: PM1.0, PM2.5, PM10
Temperature Range: -10°C to +60°C
Humidity Range: 0% to 99% RH (non-condensing)
Particle Measurement Range: 0–500 µg/m³
Resolution: 1 µg/m³ (particles), 0.1°C (temp), 1% RH (humidity)
Detection Principle: Laser scattering + fan
Output Interface: UART (digital)
Response Time: ≤10 seconds
Working Voltage: 5V DC
Power Consumption: ≤100 mA
Size: Approx. 50mm × 38mm × 21mm
Applications:
Air purifiers and filters
Environmental monitoring systems
Smart HVAC and home automation
IoT air quality projects
Personal and wearable monitors
Gas Sensors, PM Dust Sensor

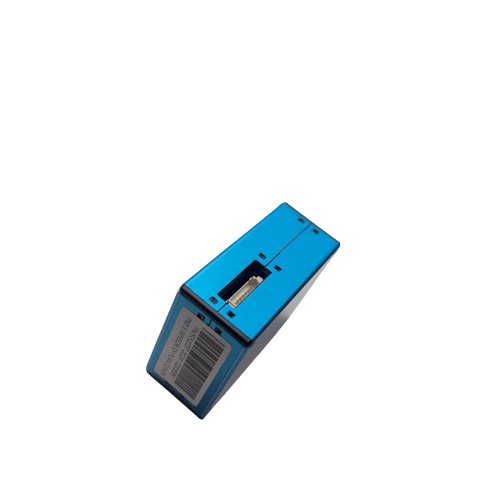

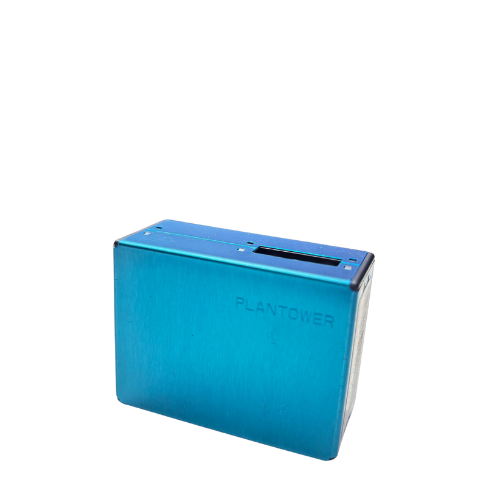

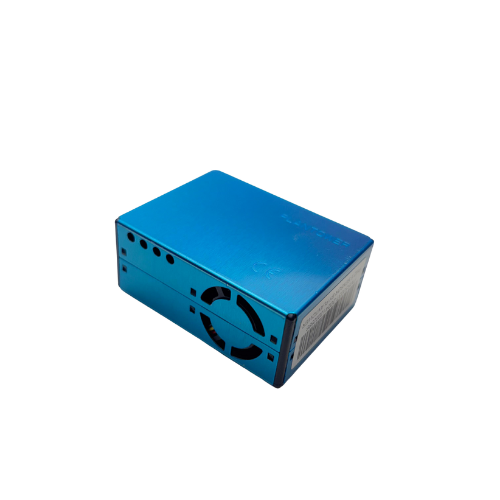

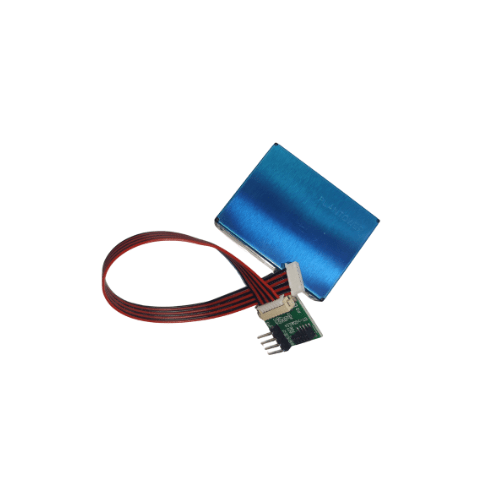

PLANTOWER | PMS7003T Monitors PM1.0, PM2.5, PM10 | With Cable ADAPTOR | DUST SENSOR | 90 DEGREE LASER SCRATTERING
₹2,453.00 Price With Tax
Measures PM1.0, PM2.5, and PM10 simultaneously
Integrated temperature and humidity sensor
Laser-based particle detection for high accuracy
Compact module with UART digital interface
Suitable for IoT, air purifiers, and smart environments
Availability: 50 in stock
15 Days Warranty
This product comes with a 15-day warranty starting from the date of delivery. The warranty covers manufacturing defects only. If a defect is confirmed, the item will be replaced.
Warranty will not apply if:
The product has been misused, dropped, or damaged.
It has been exposed to water, fire, chemicals, or static discharge.
It has been tampered with, soldered, or altered in any way.
The PMS7003T is a 3-in-1 digital sensor module that combines a laser particle counter, temperature, and humidity sensor into one compact device. It provides accurate real-time measurement of PM1.0, PM2.5, and PM10 concentrations along with ambient temperature and relative humidity.
Using laser scattering technology, it ensures stable performance, fast response, and long service life. The UART digital interface makes integration easy with microcontrollers, Raspberry Pi, and other IoT platforms, making it ideal for air purifiers, smart homes, HVAC systems, and environmental monitoring.
| Weight | 0.200 kg |
|---|---|
| Dimensions | 5 × 1 × 4 cm |
