| Item | Parameter |
| Detection gas | Carbon Monoxide (CO) |
| Measurement Range | 0~1000ppm |
| Max detecting concentration | 2000ppm |
| Sensitivity | >0.8nA/ppm |
| Resolution ratio | 1ppm |
| Response time(T90) | <30S |
| Load resistance(recommended) | 500/1k/2k Ω |
| Repeatability | <3% output value |
| Output Linearity | linear |
| Zero drift(-20℃~40℃) | ≤10ppm |
| Temperature Range | -20℃~50℃ |
| Humidity Range | 15%~90%RH |
| Pressure range | Normal atmosphere±10% |
| Anticipated using life | 3 years |
CO Sensor

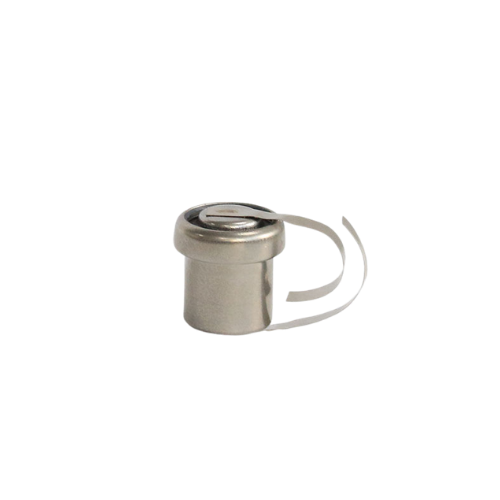

ME2-CO-Φ14×14 Carbon Monoxide Gas Sensor – High Precision Electrochemical CO Detector
₹1,770.00 Price With Tax
Buy the ME2-CO-Φ14×14 carbon monoxide gas sensor with high sensitivity, fast response, and long life. Electrochemical CO detector ideal for home safety alarms, air quality monitoring, portable CO detectors, and smart safety systems.
Available to Order lead time minimum 5-7 Weeks , Minimum quantity to order 5 pcs.
15 Days Warranty
This product comes with a 15-day warranty starting from the date of delivery. The warranty covers manufacturing defects only. If a defect is confirmed, the item will be replaced.
Warranty will not apply if:
- The product has been misused, dropped, or damaged.
- It has been exposed to water, fire, chemicals, or static discharge.
- It has been tampered with, soldered, or altered in any way.
ME2-CO-Φ14×14 Carbon Monoxide (CO) Gas Sensor – Electrochemical CO Detection Module
The ME2-CO-Φ14×14 Carbon Monoxide Gas Sensor is a high-performance electrochemical sensor designed for accurate and dependable detection of carbon monoxide (CO) gas in a wide range of environments — from residential and commercial to portable safety devices. Its compact Φ14×14 mm package combines precision sensing, stable output, and long-term reliability, making it an excellent choice for safety applications where fast and accurate CO detection is essential.
Carbon monoxide is a colorless, odorless, and highly toxic gas that can be produced by incomplete combustion of fuels such as gas heaters, fireplaces, stoves, and vehicle exhaust. Because CO cannot be detected by human senses alone, reliable sensors like the ME2-CO-Φ14×14 are critical for early warning, protection, and indoor air quality monitoring.
Key Features
- High sensitivity electrochemical detection of carbon monoxide
- Compact Φ14×14 mm form factor
- Fast response and rapid recovery
- Stable and linear analog output signal
- Low power consumption
- Long sensor life with minimal signal drift
- Easy integration with microcontrollers and safety systems
Ideal Applications
The ME2-CO-Φ14×14 gas sensor is suitable for a broad spectrum of CO detection and safety applications, including:
- Home carbon monoxide alarm systems
- Indoor air quality (IAQ) monitoring devices
- Portable CO gas detectors
- Smart home safety and automation systems
- HVAC system safety monitoring
- IoT and connected environmental sensors
- Battery-powered safety and wearable devices
- DIY electronics and educational kits
How the ME2-CO-Φ14×14 Sensor Works
The ME2-CO-Φ14×14 sensor uses advanced electrochemical sensing technology to deliver accurate and reliable CO detection. Inside the sensor, carbon monoxide molecules react chemically with the sensing electrodes, generating an electrical current proportional to the CO concentration in the environment. This current is then converted into a stable, linear analog voltage output that can be easily read and processed by microcontrollers, signal processors, or alarm circuits.
Electrochemical sensors are preferred for CO detection because they offer high selectivity, minimal cross-sensitivity to other gases, and consistent performance over time — making them ideal for applications that demand accuracy and long-term stability.
Performance Benefits
Fast Detection: Rapid response to changes in CO levels enables earlier alerts and safer outcomes.
High Sensitivity: Accurately detects low to high carbon monoxide concentrations.
Stable & Linear Output: Smooth signal response simplifies calibration and data interpretation.
Durable & Reliable: Long service life with stable performance and minimal drift.
Energy Efficient: Low power usage supports battery-powered and portable systems.
Why Choose the ME2-CO-Φ14×14 Sensor?
The ME2-CO-Φ14×14 Carbon Monoxide Gas Sensor stands out as a dependable, accurate, and easy-to-integrate solution for CO detection needs. Whether you’re building a home safety alarm, upgrading an indoor air quality monitor, or developing a portable CO detector, this sensor delivers the precision and performance required for modern safety systems.
By providing real-time carbon monoxide monitoring, the ME2-CO-Φ14×14 helps protect lives, enhance indoor air quality, and improve overall safety — making it a trusted component for consumer safety products and smart environmental systems alike.
| Weight | 0.200 kg |
|---|---|
| Dimensions | 12 × 6 × 6 cm |
