Parameter |
Specification |
|
Product Name |
ES1-H2-5% |
|
Sensor Type |
Electrochemical Hydrogen Sensor Module |
|
Gas Detected |
Hydrogen (H₂) |
|
Detection Range |
0–5% Vol (0–50,000 ppm) |
|
Maximum Overload |
7% Vol (Typical) |
|
Resolution |
Percentage-level detection |
|
Output Signal |
Analog Voltage / Current Output |
|
Response Time (T90) |
≤ 30 seconds |
|
Warm-Up Time |
≤ 3 minutes |
|
Operating Temperature |
-20°C to +50°C |
|
Operating Humidity |
15%–90% RH (Non-condensing) |
|
Expected Sensor Life |
2–3 years (Typical) |
|
Power Supply |
Standard low-voltage DC |
|
Mounting |
PCB Module Integration |
|
Application |
High-concentration hydrogen monitoring |
H2 Hydrogen Sensor

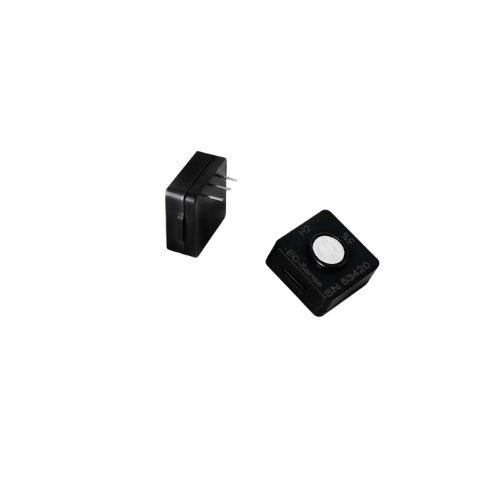

ES1-H2-5% H2 Gas Sensor – 0–5% Vol
₹7,670.00 Price With Tax
ES1-H2-5% electrochemical hydrogen gas sensor module with 0–5% Vol range. High-concentration H2 monitoring for industrial safety systems.
Available to Order lead time minimum 5-7 Weeks , Minimum quantity to order 5 pcs.
15 Days Warranty
This product comes with a 15-day warranty starting from the date of delivery. The warranty covers manufacturing defects only. If a defect is confirmed, the item will be replaced.
Warranty will not apply if:
- The product has been misused, dropped, or damaged.
- It has been exposed to water, fire, chemicals, or static discharge.
- It has been tampered with, soldered, or altered in any way.
ES1-H2-5% High-Concentration Hydrogen Gas Sensor Module
The ES1-H2-5% Hydrogen Gas Sensor Module is engineered for high-concentration hydrogen detection up to 5% volume (50,000 ppm). Designed for demanding industrial environments, this module provides accurate, stable, and fast-response monitoring of hydrogen gas in applications where ppm-level sensors are insufficient.
Hydrogen (H₂) is widely used in chemical processing, refineries, hydrogen fuel systems, battery charging stations, and semiconductor manufacturing. While hydrogen is non-toxic, it is extremely flammable and poses serious explosion risks when concentrations approach its lower explosive limit (LEL). Monitoring hydrogen levels in percentage volume range is essential for industrial safety and regulatory compliance.
The ES1-H2-5% module utilizes advanced electrochemical sensing technology to deliver reliable high-range detection. It offers stable analog output for seamless integration into PLC systems, industrial controllers, alarm panels, fixed gas detectors, and OEM gas detection equipment.
Key Features
- Detection range: 0–5% Vol (0–50,000 ppm)
- Electrochemical sensing technology
- Fast response time (T90 ≤ 30 sec)
- Stable and repeatable performance
- Analog voltage/current output
- Compact PCB-ready module
- Low power consumption
- Long service life (2–3 years typical)
Ideal Applications
- Hydrogen storage facilities
- Fuel cell systems and hydrogen energy plants
- Chemical and petrochemical industries
- Battery charging rooms
- Semiconductor manufacturing
- Industrial hydrogen safety systems
Why Choose ES1-H2-5%?
This module is specifically designed for environments where hydrogen concentration may rise to percentage levels. It provides enhanced detection capability, industrial reliability, and easy system integration for safety-critical applications.
Wide 5% volume detection range
Suitable for high-risk industrial environments
Stable long-term operation
Easy PLC & control system integration
Cost-effective industrial hydrogen monitoring solution
| Weight | 0.200 kg |
|---|---|
| Dimensions | 12 × 6 × 6 cm |
