Parameter |
Details |
|
Product Model |
EC4-HF-10 |
|
Sensor Type |
Electrochemical |
|
Gas Detected |
Hydrogen Fluoride (HF) |
|
Detection Range |
0–10 ppm |
|
Output Signal |
Analog (µA current output) |
|
Response Time (T90) |
≤ 30 seconds |
|
Operating Temperature |
-20°C to +50°C |
|
Humidity Range |
15%–90% RH (non-condensing) |
|
Bias Voltage |
Not required |
|
Lifespan |
2–3 years (typical) |
Gas Sensors, HF / HCL /F2 Fluorine / CH4

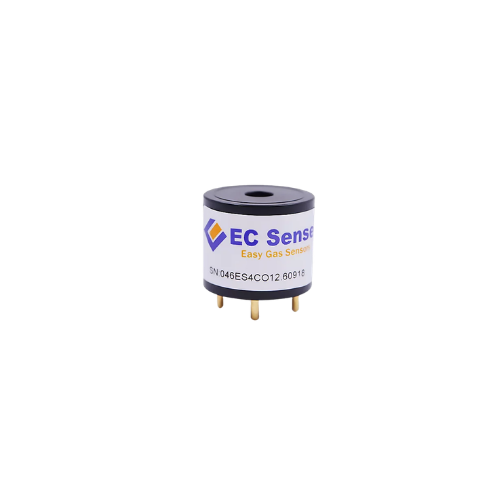

EC4-HF-10 Gas Sensor | Electrochemical Hydrogen Fluoride (HF) Sensor 0–10 ppm
₹11,564.00 Price With Tax
Buy EC4-HF-10 Gas Sensor for accurate Hydrogen Fluoride detection (0–10 ppm). Industrial electrochemical HF sensor for safety and environmental monitoring.
Available to Order lead time minimum 5-7 Weeks , Minimum quantity to order 5 pcs.
15 Days Warranty
This product comes with a 15-day warranty starting from the date of delivery. The warranty covers manufacturing defects only. If a defect is confirmed, the item will be replaced.
Warranty will not apply if:
- The product has been misused, dropped, or damaged.
- It has been exposed to water, fire, chemicals, or static discharge.
- It has been tampered with, soldered, or altered in any way.
The EC4-HF-10 Gas Sensor is a high-performance electrochemical sensor designed for accurate detection of Hydrogen Fluoride (HF) gas in air. With a detection range of 0–10 ppm, it is ideal for industrial safety, environmental monitoring, and hazardous gas detection systems.
Built with advanced electrochemical technology, the EC4-HF-10 offers high sensitivity, fast response, and excellent stability, making it suitable for continuous monitoring in critical environments.
Key Features
- Electrochemical Hydrogen Fluoride (HF) gas sensor
- Detection range: 0–10 ppm
- High sensitivity for low-level HF detection
- Fast response and recovery time
- Excellent repeatability and long-term stability
- Low power consumption (passive sensor)
- Strong resistance to cross-gas interference
- Industrial-grade performance
Applications
The EC4-HF-10 sensor is widely used in:
- Industrial safety and gas leak detection
- Chemical plants and manufacturing facilities
- Environmental monitoring systems
- Laboratory and research environments
- Hazardous gas detection equipment
- Air quality monitoring in industrial zones
Why Choose EC4-HF-10?
The EC4-HF-10 is designed for critical safety applications, offering reliable detection of toxic Hydrogen Fluoride gas.
Key advantages:
- Accurate detection at low ppm levels
- Stable electrochemical performance
- Suitable for harsh industrial environments
- Long-term reliable operation
It is an ideal choice for OEMs and engineers building HF gas detection and safety systems.
Installation & Usage Tips
- Use a transimpedance amplifier for signal conditioning
- Calibrate before deployment for accurate readings
- Ensure proper airflow around the sensor
- Avoid exposure beyond specified concentration range
- Perform periodic calibration for long-term stability
Package Includes
- 1 × EC4-HF-10 Electrochemical Gas Sensor
| Weight | 0.100 kg |
|---|---|
| Dimensions | 12 × 6 × 6 cm |
